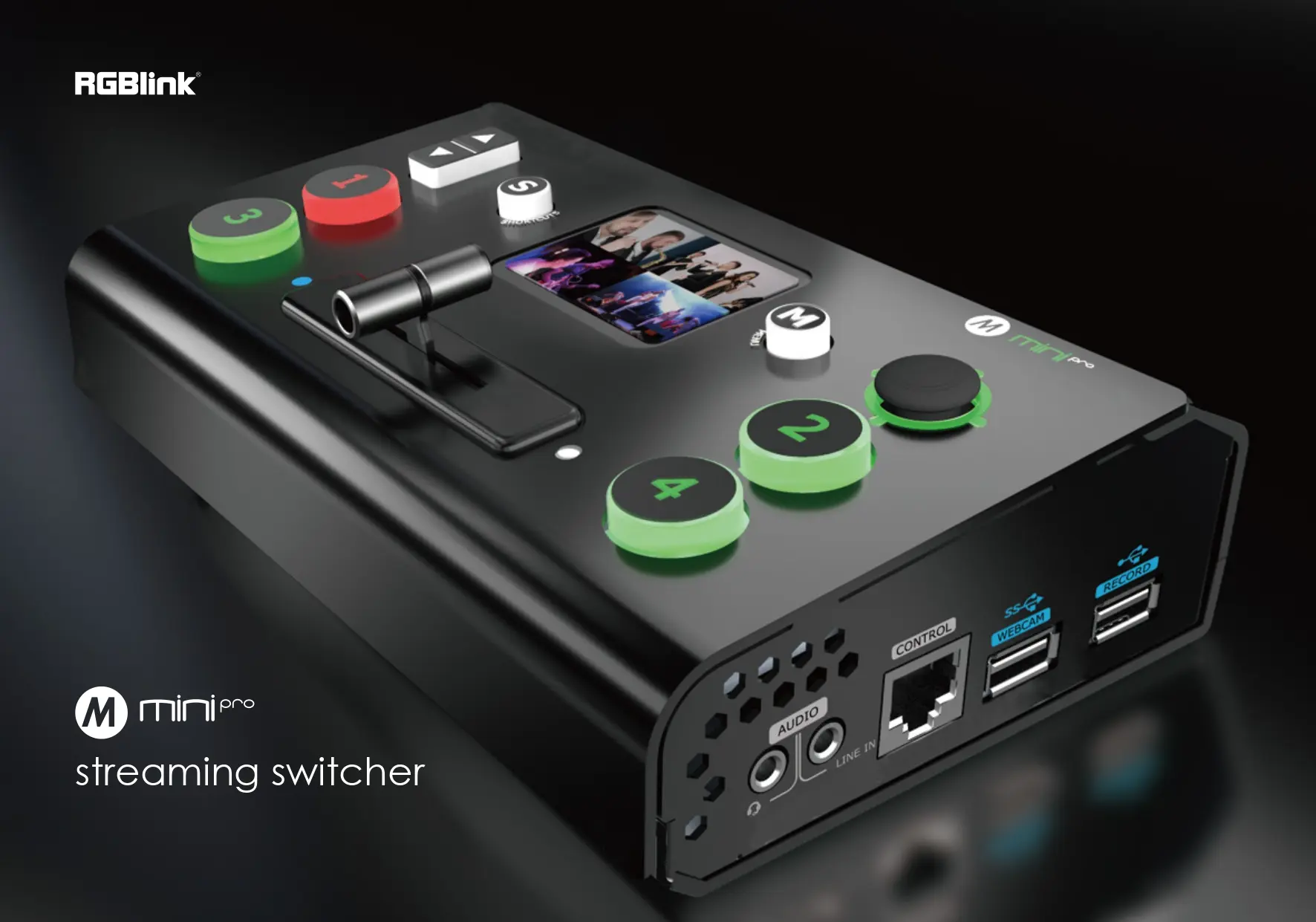

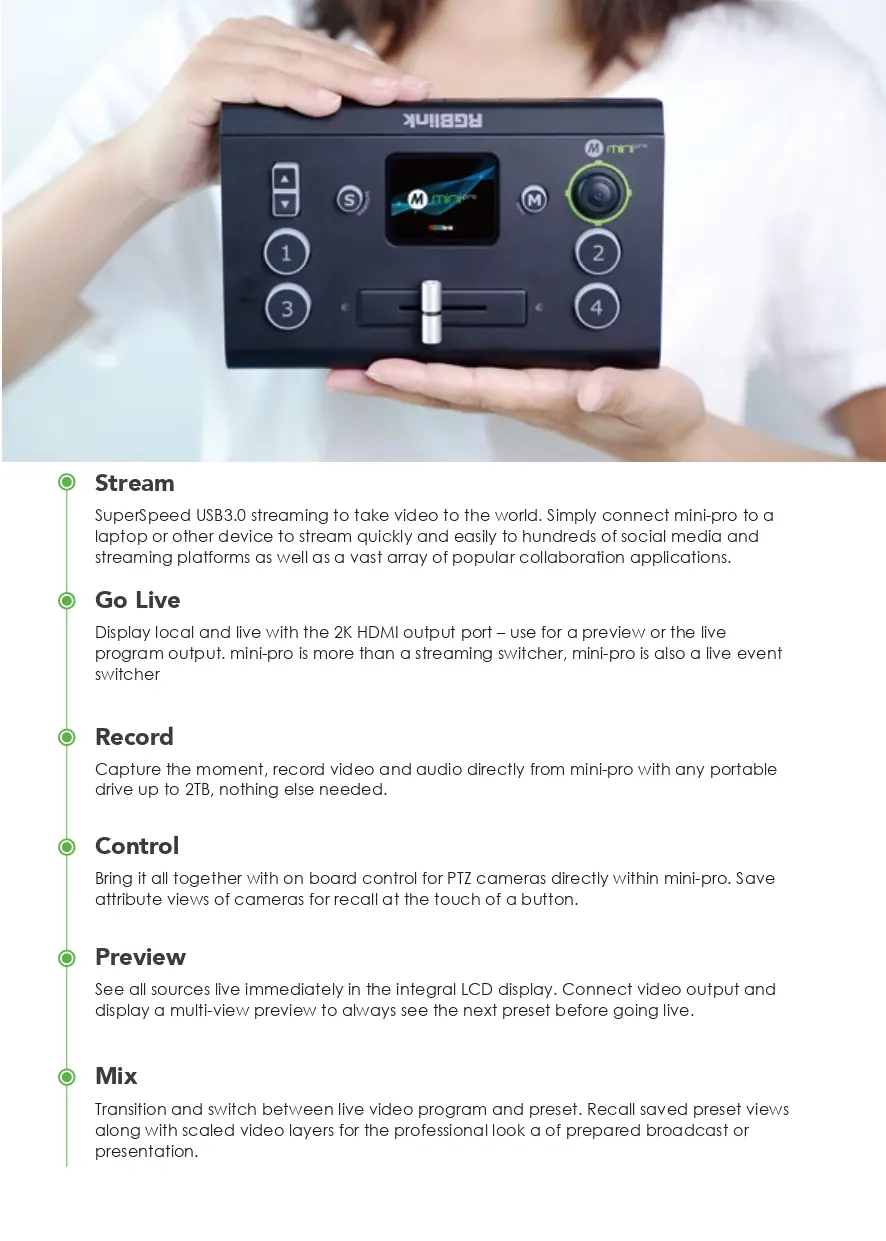

RGBLINK MINI-PRO

Brand	RGBLink
Material	Metal body, polypropylene
Weight	500 g
Dimensions	7.1 x 4.6 x 2.3" / 18 x 11.8 x 5.8 cm

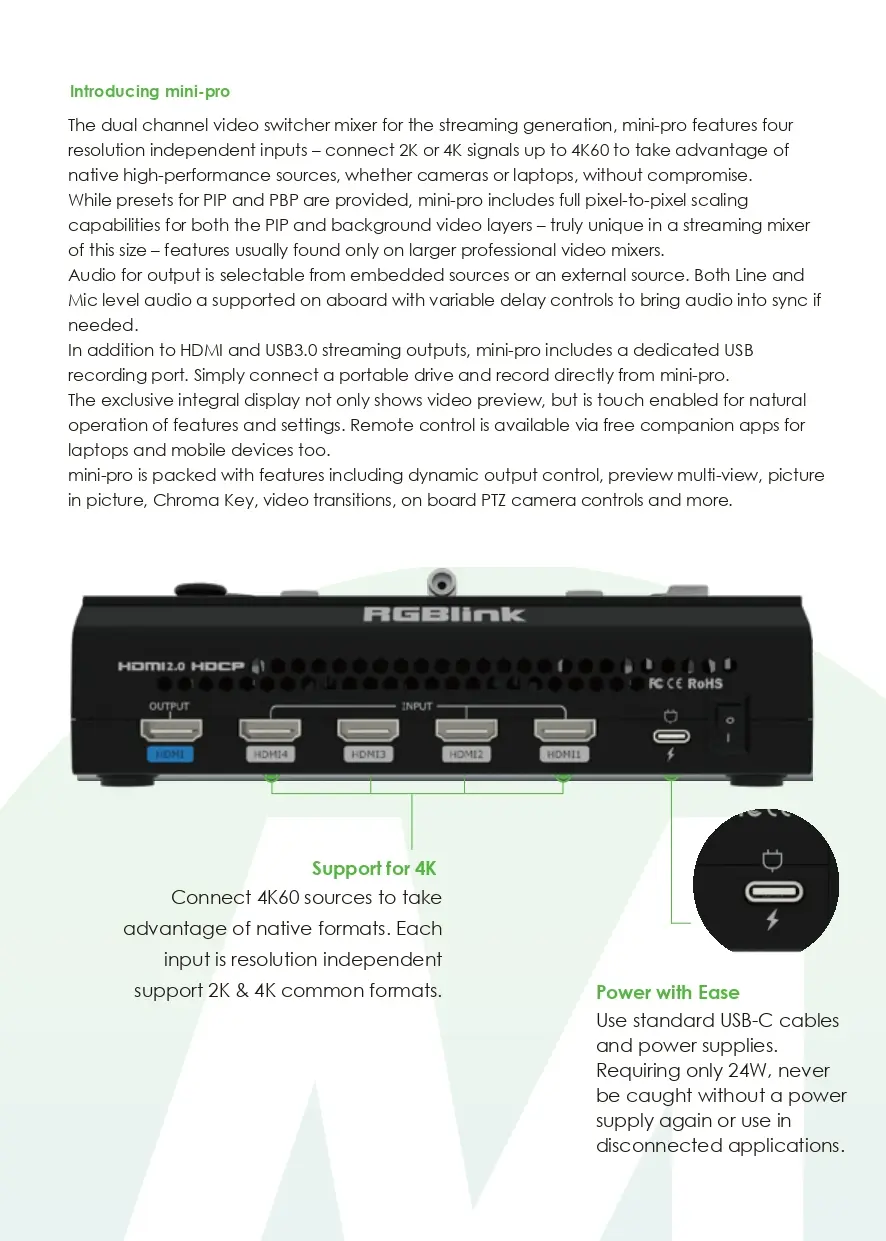

The dual channel video switcher mixer for the streaming generation, mini-pro features four resolution independent inputs – up to full 4K60 to take advantage of native high-performance sources, whether cameras or laptops, without compromise. While presets for PIP and PBP are provided, mini-pro includes full pixel-to-pixel scaling capabilities for both the PIP and background video layers – truly unique in a streaming mixer of this size – features usually found only on larger professional video mixers.

Audio for output is selectable from embedded sources or an external source. Both Line and Mic level audio a supported on board with variable delay controls to bring audio into sync if needed.

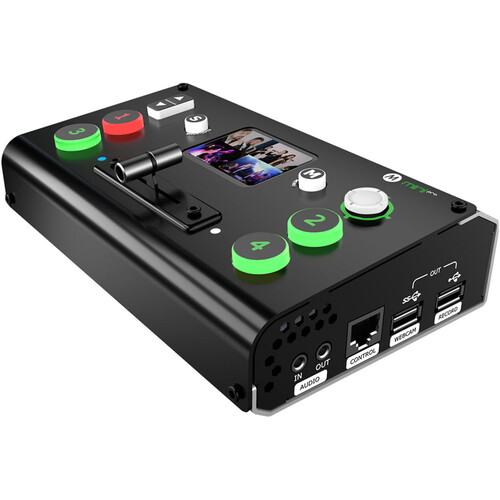

In addition to HDMI and USB3.0 streaming outputs, mini-pro includes a dedicated USB recording port. Simply connect a portable drive and record directly from mini-pro.

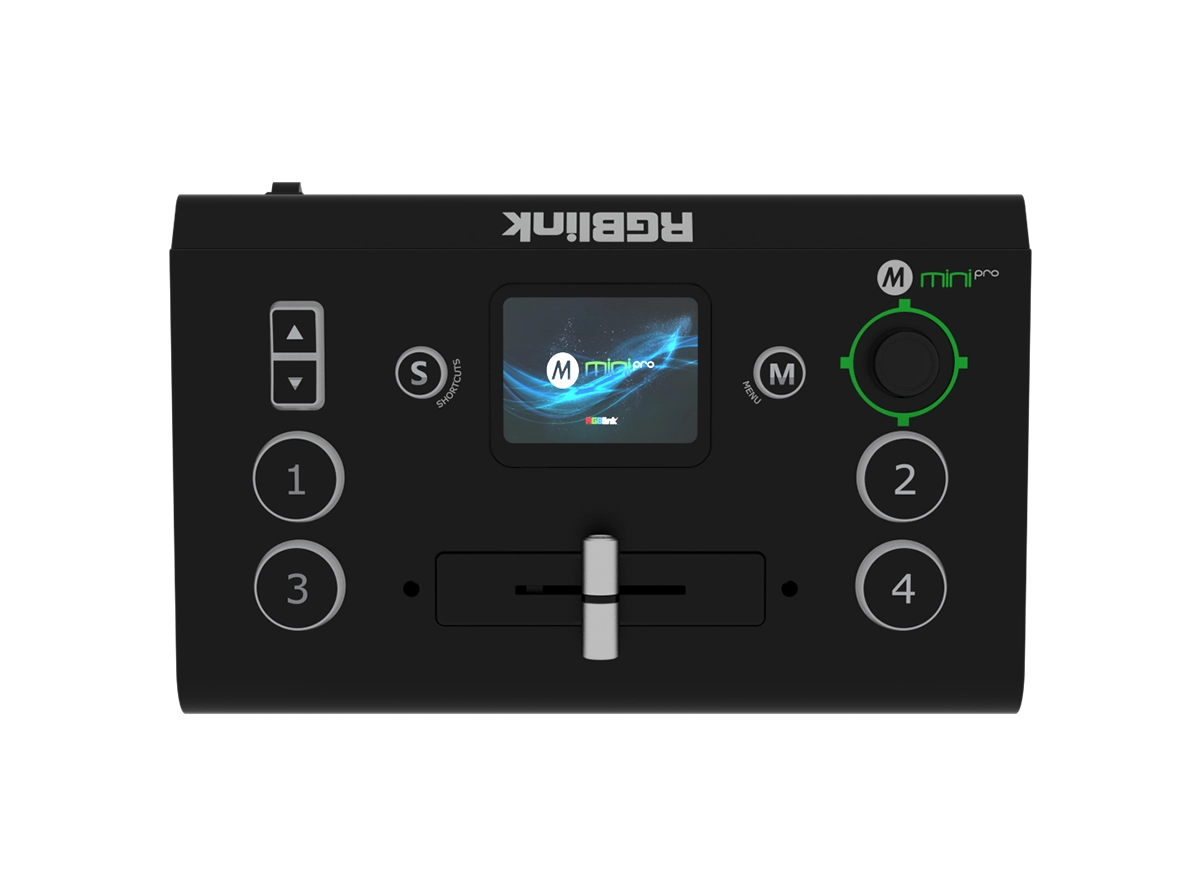

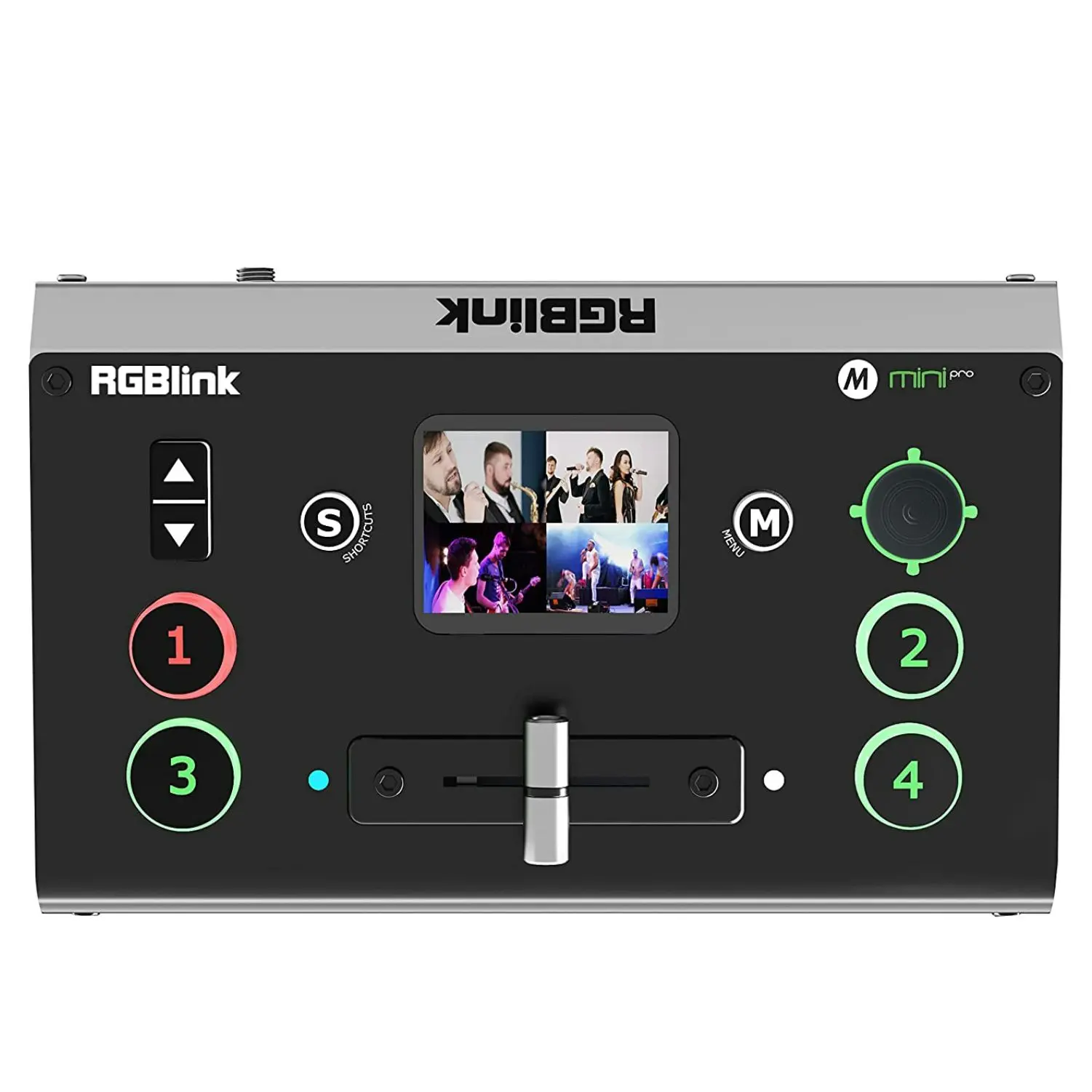

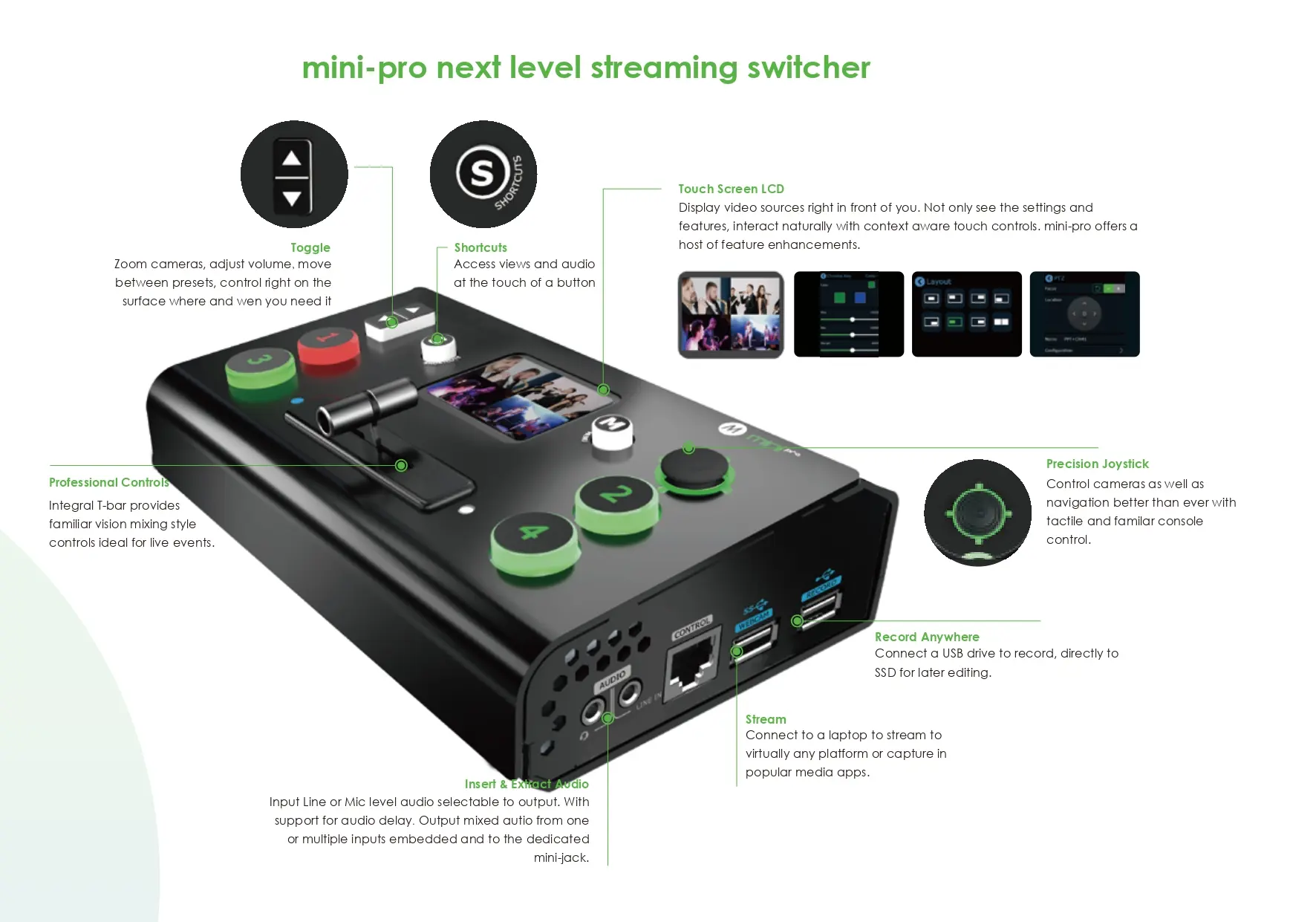

The exclusive integral display not only shows video preview, but is touch enabled for natural operation of features and settings. Remote control is available via free companion apps for
laptops and mobile devices too.

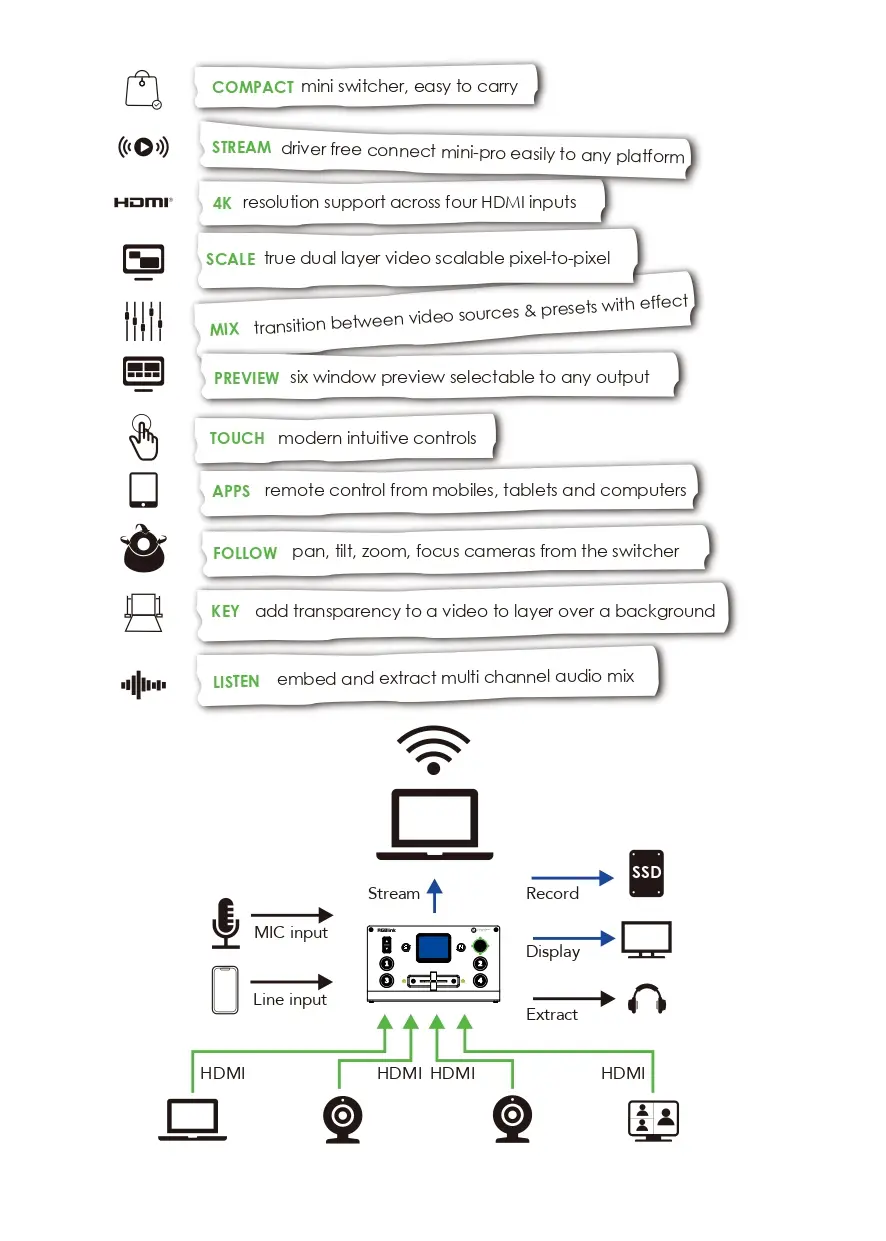

mini-pro is packed with features including dynamic output control, preview multi-view, picture in picture, Chroma Key, video transitions, on board PTZ camera controls and more.

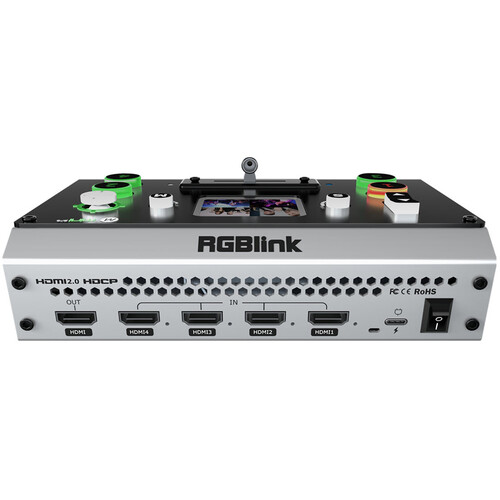

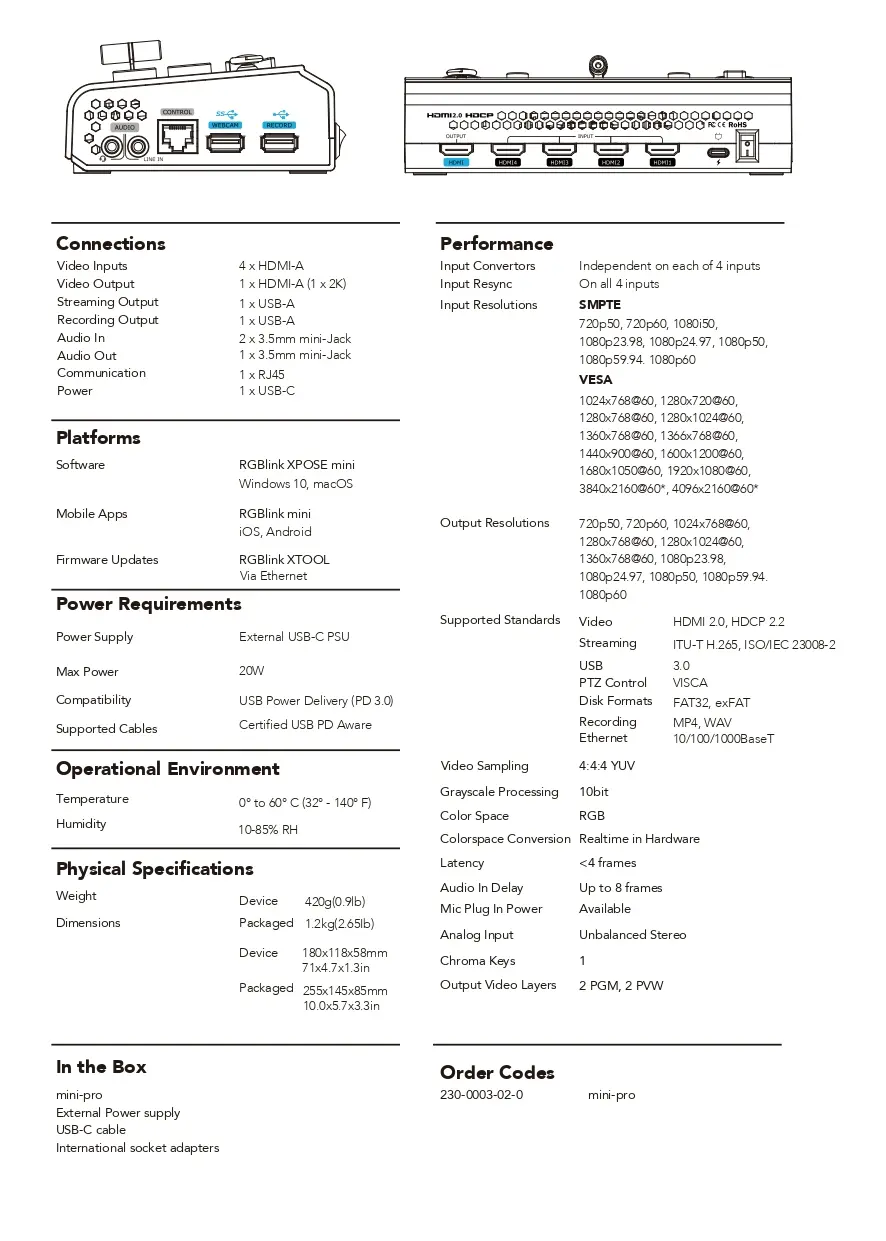

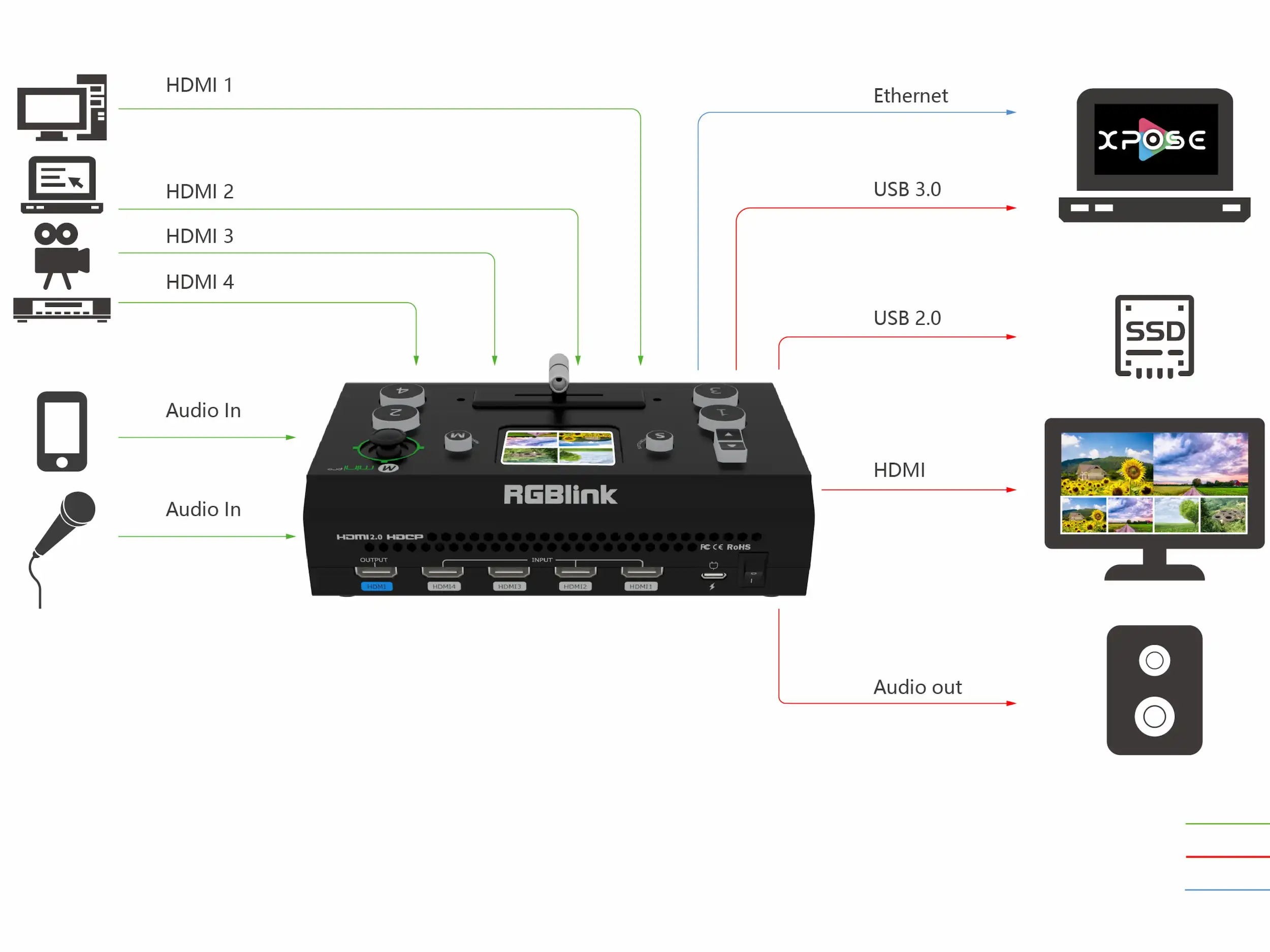

Connectors	Input	HDMI 4K	4×HDMI-A
	Output	HDMI 2K	1×HDMI-A
		Streaming	1×USB TypeA
		Recording	1×USB TypeA
	Audio	In	2×3.5mm Stereo Jack
		Out	1×3.5mm Stereo Jack
	Communication	LAN	1×RJ45
	Power		1×USB-C
Performance	Input Resolutions	HDMI
		SMPTE	720p@50/60 \|1080i@50 \| 1080p@24/30/50/60 \|2160p@60
		VESA	1024×768@60 \| 1280×720@60 \| 1280×768@60 \| 1280×800@60 \| 1280×1024@60 \|
			1360×768@60 \| 1366×768@60 \| 1440×900@60 \| 1600×1200@60 \| 1680×1050@60 \|
			1920×1080@60 \| 1920×1200@60 \| 3840×2160@60 \| 4096×2160@60
	Output Resolutions	HDMI
		SMPTE	720p@50/60 \| 1080p@24/25/30/50/60
		VESA	1024×768@60 \| 1280×720@50/60 \| 1280×768@60 \| 1280×1024@60 \| 1360×768@60 \|
			1920×1080@24/25/30/50/60
		USB
			1024×768@60 \| 1280×720@50/60 \| 1280×768@60 \| 1280×1024@60 \| 1360×768@60 \|
			1920×1080@24/25/30/50/60
	Supported Standards	HDMI	2.0
		USB	3.0
		H.265	ITU-T H.265/ ISO/IEC 23008-2
	Supported Protocol	PTZ	VISCA
	Video Formats	HDMI 2.0 \| HDCP 2.2
	Streaming Formats	ITU-T H.265 \| ISO/IEC 23008-2
	Disk Formats	FAT32(≤32 GB) \| exFAT(64GB~2T)
	Recording Formats	MP4 \| WAV
	Color Space	RGB
	Video Sampling	4:4:4 YUV
	Latency	<4 frames
	Line In Delay	up to 8 frames
Power	Input Voltage	DC 12V/1.5A (via plug pack supplied)
	Max Power	20W
	Compatibility	USB Power Delivery (PD) 3.0
	Supported Cables	Certified USB PD Aware
Environment	Temperature	0℃~60℃
Environment	Humidity	10%~85%
Physical	Weight	Net	0.42kg
	Weight	Package	1.20kg
	Dimension	Net	180mm×118.3mm×58.4mm
	Dimension	Package	255mm×145mm×85mm
